AW-1716HDK5
• 17,3“ FULL HD LCD Monitor
• 16 Port CAT.5 KVM |
|
| |
|
|
|
| |

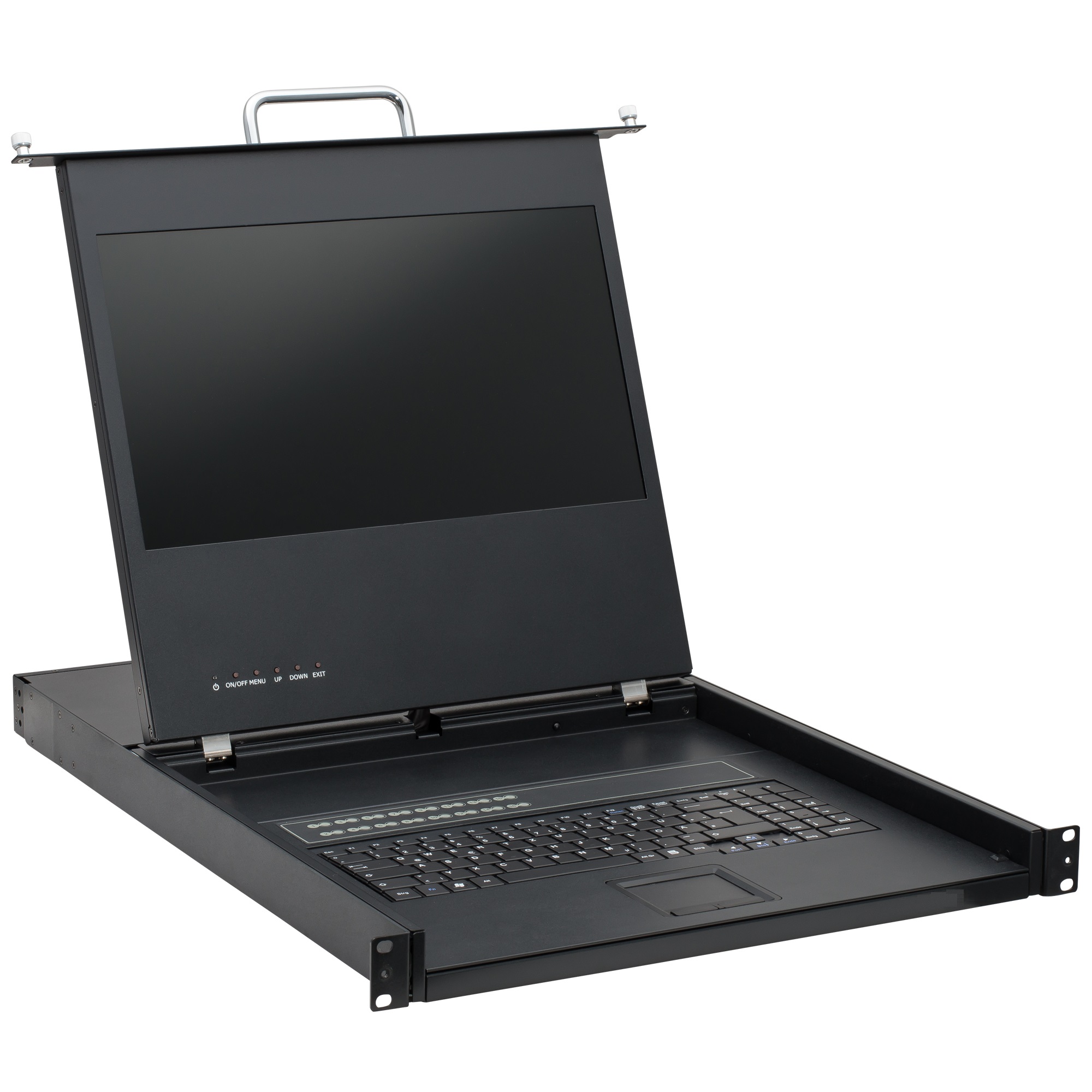

| AW-1716 HD-K5 is a Full HD 17,3“ Monitor, Keyboard-Drawer with LED Backlight. A value keyboard with number block and touchpad and the integrated 16 / 32 Port CAT.5 KVM are completing the external design. The new equipment ensures brilliant HD images and monitoring in unprecedented quality. The casing conforms the 1U Standard, is easily installed and mountable with the included mounting kit. |
| |
Specifications:
• Tree-chainable for next level up to 16 PMC-0132 CAT.5 KVM-Switches
• Tree-chaining distance up to 5 meters
• Port capacity is scalable up to 256 PCs through tree-chaining with PMC models
• Computer selection by Keyboard -Hotkeys and OSD-Menu
• On-Screen-Display und system notification as a Pop-Up
• Additional console port (competing)
• With an additional (optional) receiver PMC-300R the control panel can be reflected by an 1:1 Cat.x cable connection on a distance up to 300m.
• Supports all USB suitable operating systems: for example DOS, Windows Series / Server 2008 / Server 2013, Linux, MacOS, etc.
• Numeric LED-Status displays, for a clear display of the port status
• Buzzer sound confirms the hotkey and port circuit (de-activated)
• Autoscan dwell time of 5 ~ 95 seconds for OSD programmable
• Password protection, Auto-Logout ,Timeout-Support
• Firmware/Software upgradeable
• Auto-Logout, Timeout-Support |
| |
Properties:
• 1U 17,3“ LCD console, 640mm depth
• Stepless, adjustable angle from 0 to 105° over high quality unique torque hinges
• Easy one man assembly with the included installation angles.
• Integrated 16 / 32 port CAT.5 KVM
• Adjustable depth from 640mm up to 1140mm tread depth
• Chromed metal handle
• Practical knurled screws
• High graphic resolution, up to 1920 x 1080 with 60Hz DDC, DDC2 and DDC2B |
| |
Keyboard variants:
Available in following versions: German (DE), US-English (US), UK-English (UK), French (FR), Spanish (SP), Italian (IT) and Swiss / German (CH)
Versions available on request: Turkish (TK) and Russian(RU)
Trackball version is possible, in combination with a Cherry G84-4400 Trackball Keyboard. |
| |
 |
|
